Panel thickness
40, 45 mm (double), 60 mm (triple)
Cut-out dimensions
320 x 510 mm
Outer frame dimensions
344 x 532 mm
Installation method
screws
Frame - color
brown - dark wood
Frame - material
ABS
Glazing
SAN + SAN
Thermal conductivity
2,78 W/m2*K
Packaging
8 pcs/box
Weight
1,68 kg

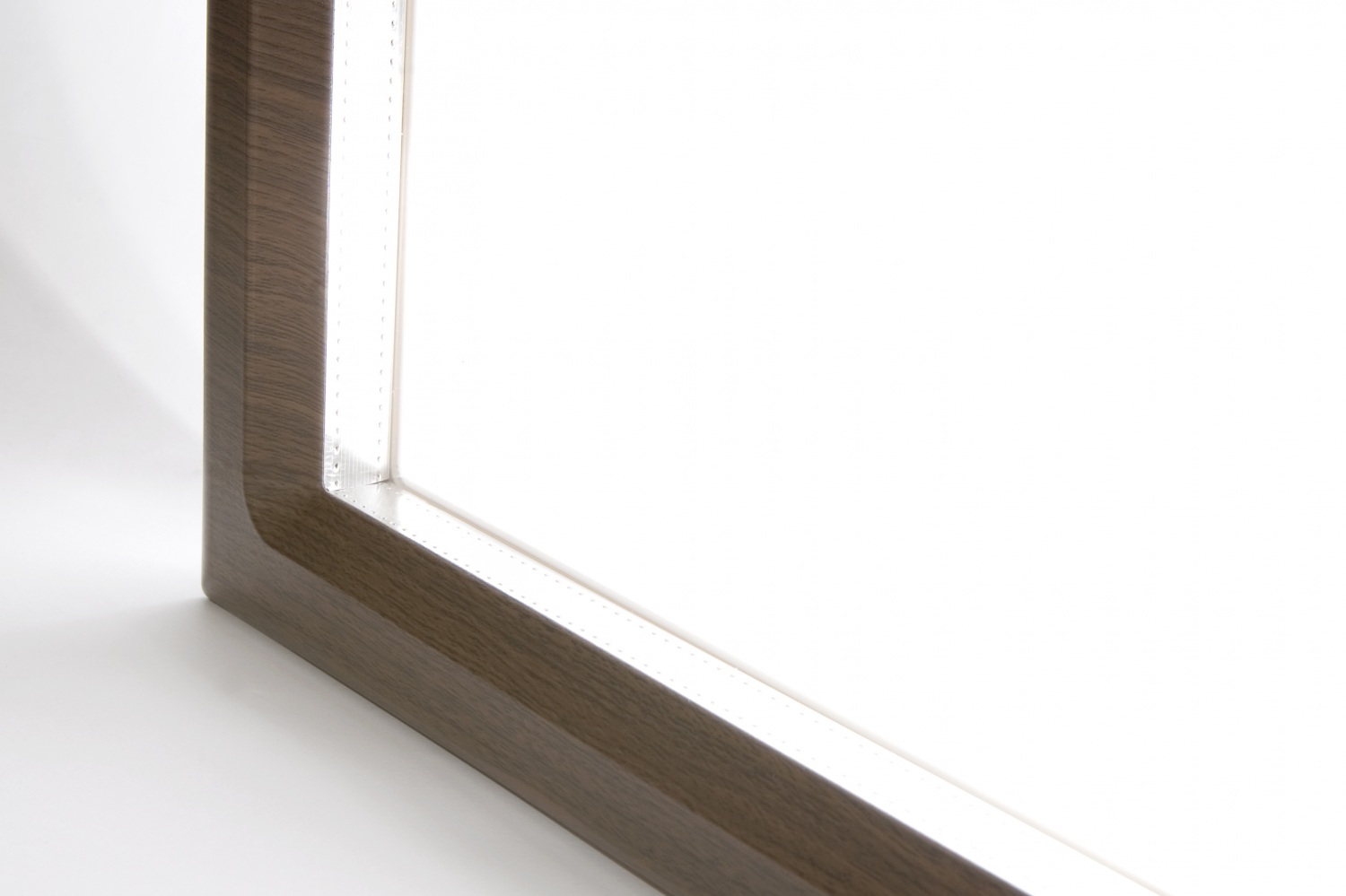

The sealant applied on the external window frame fills in the inequalities of door panel up to 1,0 mm. In case of deeper inequalities it is advised to use additional sealant.
