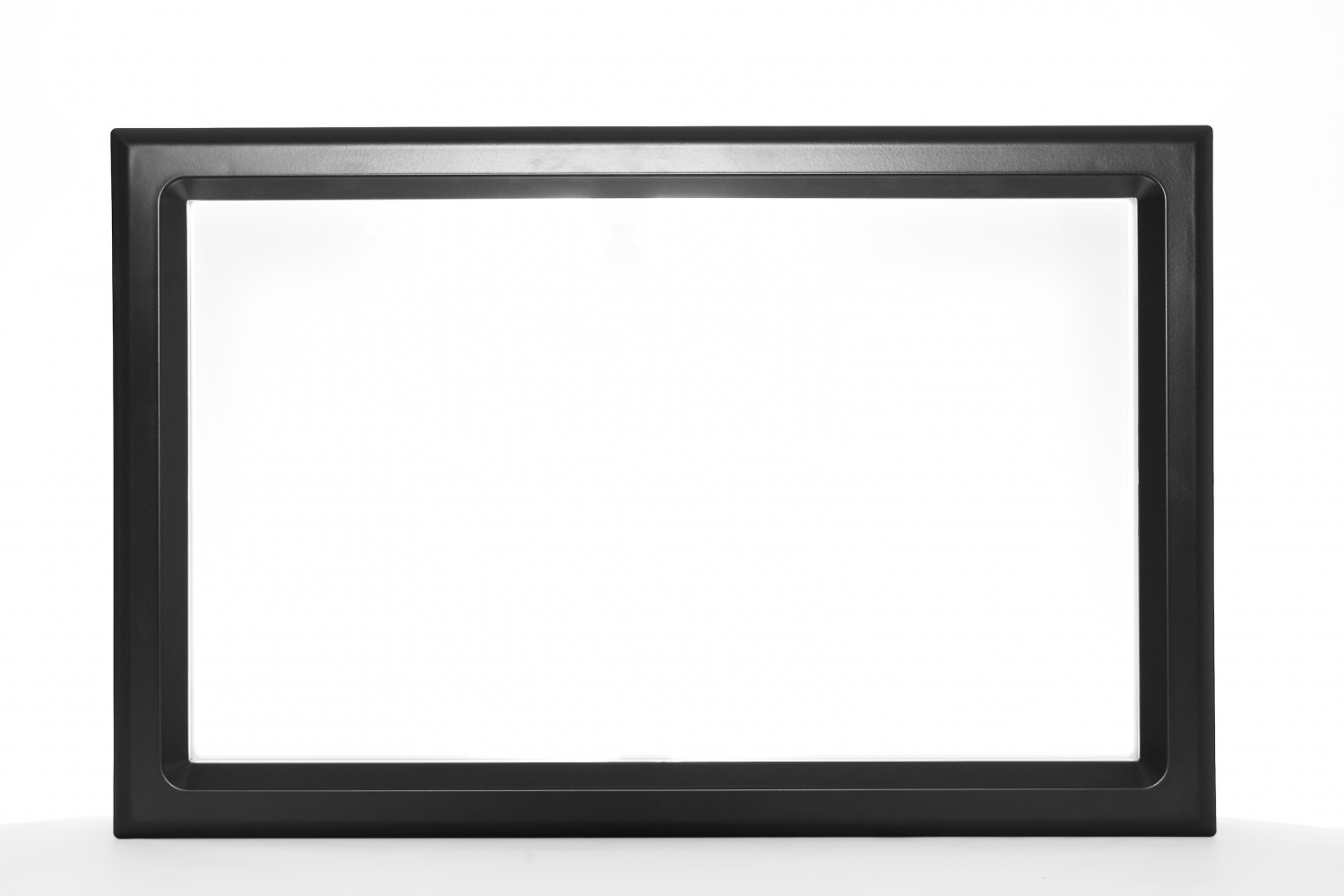

WINDOWS 344532BLSTSS with screws

Panel thickness
40, 45 mm (double), 60 mm (triple)

Cut-out dimensions
320 x 510 mm

Outer frame dimensions
344 x 532 mm

Installation method
screws

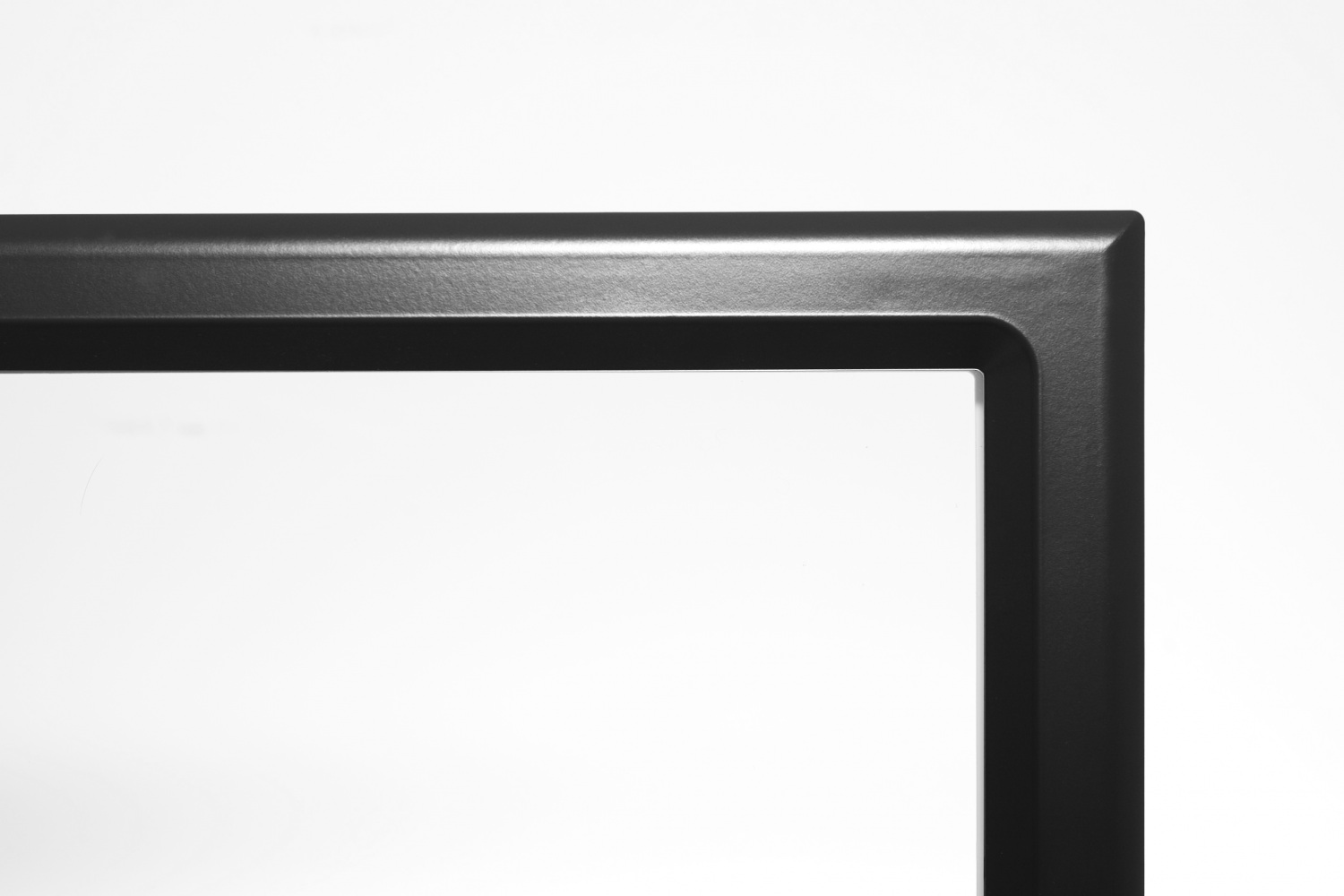

Frame - color
black, RAL ~9005

Frame - material
ABS

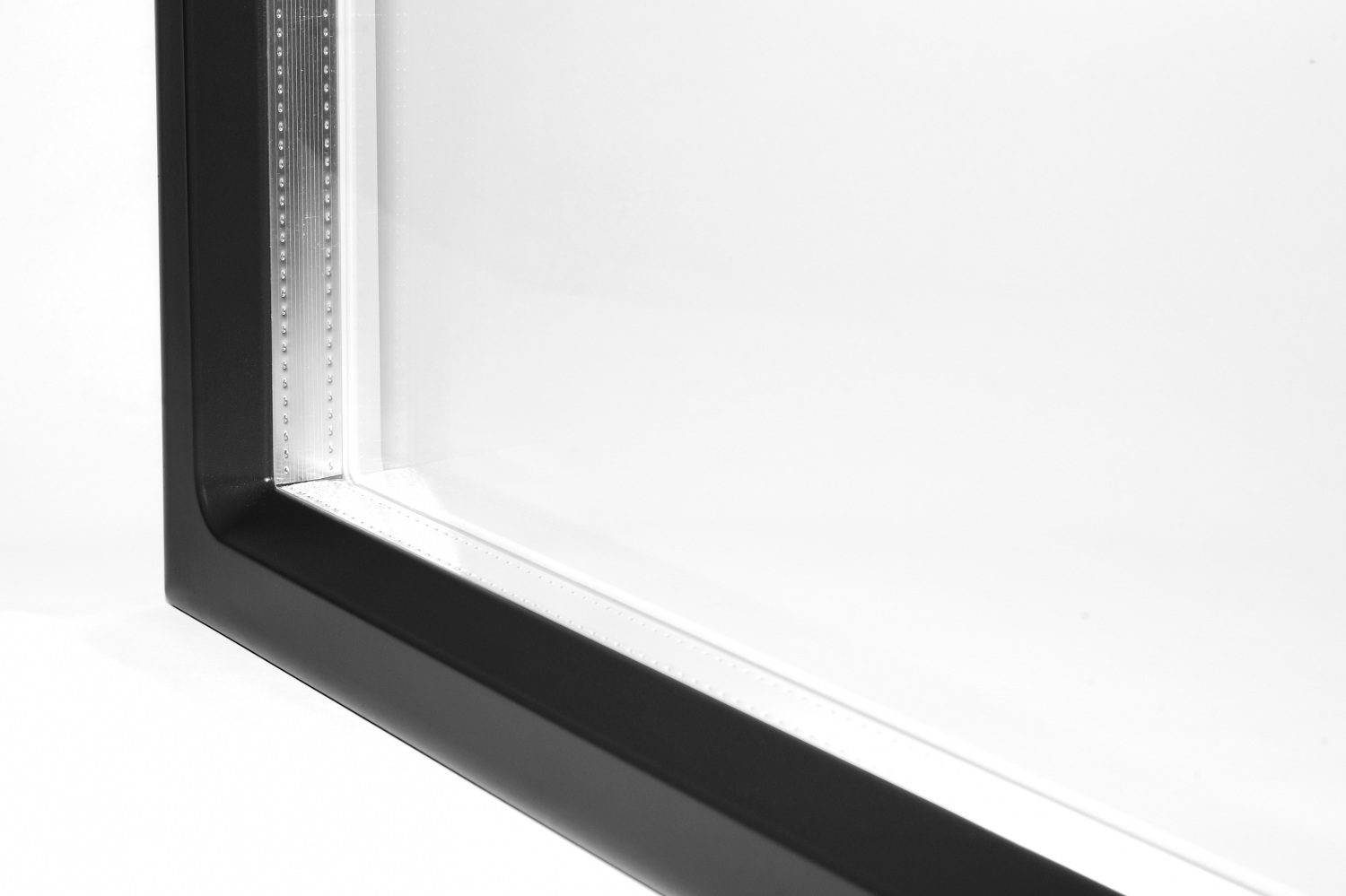

Glazing
SAN + SAN

Thermal conductivity
2,78 W/m2*K

Packaging
8 pcs/box

Weight
1,68 kg

The sealant applied on the external window frame fills in the inequalities of door panel up to 1,0 mm. In case of deeper inequalities it is advised to use additional sealant.
