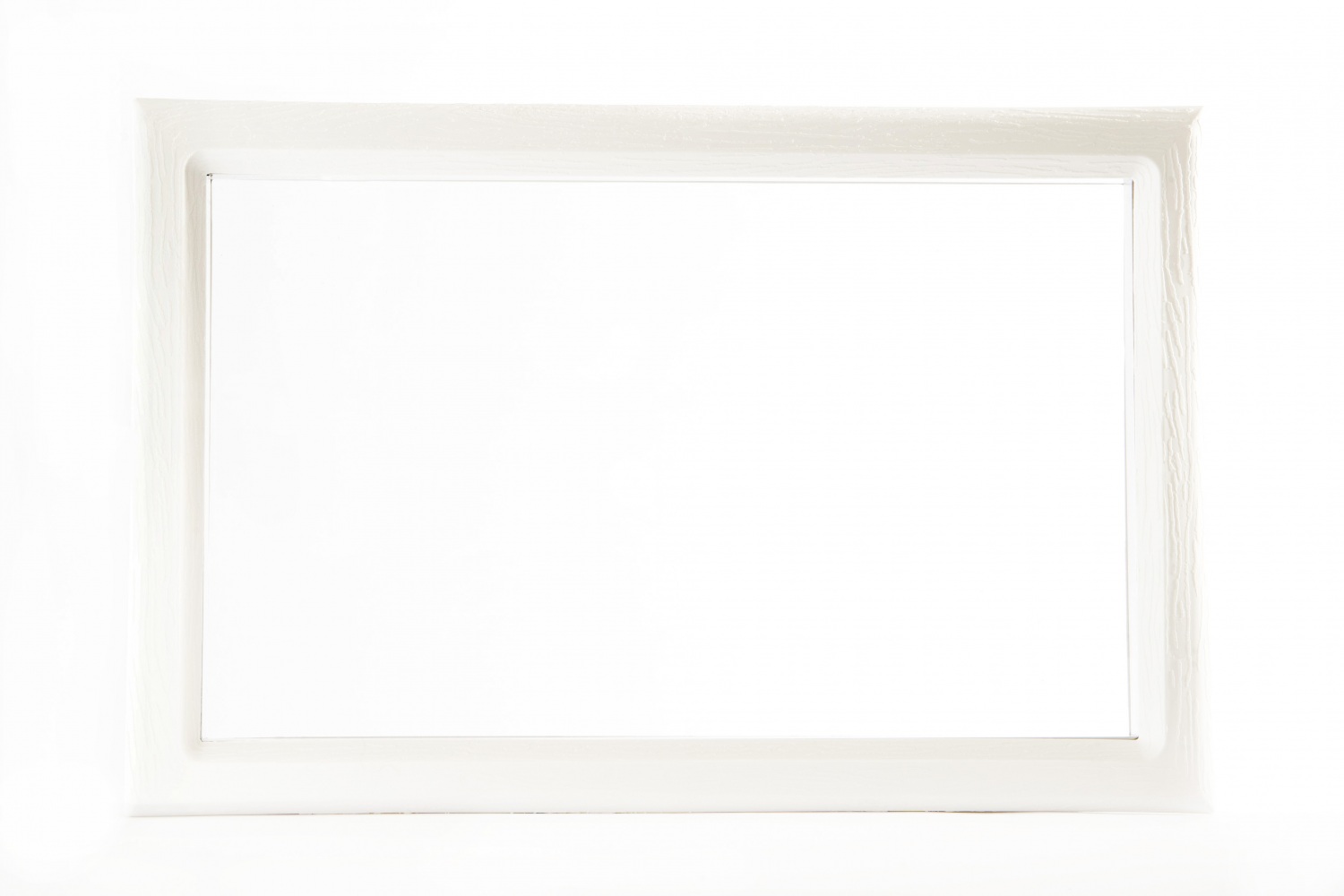

WINDOWS 324490WHSTSS with screws

Panel thickness
40, 45 mm (double), 60 mm (triple)

Cut-out dimensions
298 x 468 mm

Outer frame dimensions
324 x 490 mm

Installation method
screws

Frame - color
white ~9016

Frame - material
ABS, woodgrain

Glazing
SAN + SAN

Thermal conductivity
2,77 W/m2*K

Packaging
8 pcs/box

Weight
1,32 kg

The sealant applied on the external window frame fills in the inequalities of door panel up to 1,0 mm. In case of deeper inequalities it is advised to use additional sealant.
